Innovative solutions for electrochemical research
Electrochemical workstation

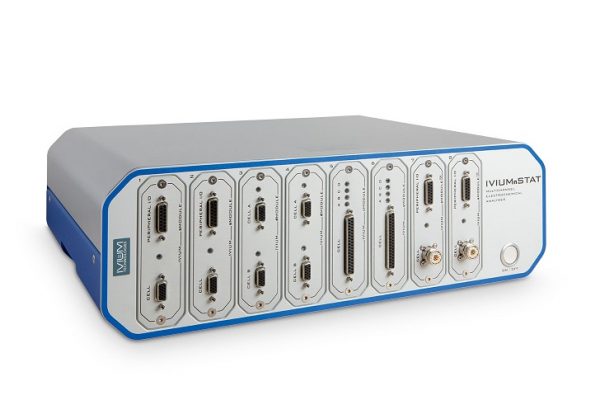

Ivium-n-Stat

Available modules:

Up to 8 modules/16 channels per frame (stackable up to 64 channels) can be installed

Modules can be mix and matched for maximum versatility

Multi-channel Potentiostat/Galvanostat/ZRA

Integrated impedance analyser in each channel as standard: 10µHz - 250kHz (1MHz optional)

Buy from your local reseller (US):

Nanoscience Instruments

Request information

Product description

Wide application range

The instrument is designed for a wide range of applications, such as battery/fuel cell-testing, electrode development, biotechnology and other Electrochemical Research applications.

Complete solution

The Ivium-n-Stat offers a complete package. The hardware includes a built-in high-performance Frequency Response Analyser, low current measurement possibility down to 100pA full-scale, and all the standard electrochemical techniques. All measurement and dataprocessing software is included (for Windows based PCs).

Safety

The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Automation

Multiple analog and digital input & output ports are available for monitoring & control of peripheral equipment. This functionality is fully integrated in the software.

Expandibility

Each channel can be expanded with various options and modules (depending on the compatibility), such as a power booster, multiplexer, etc.

Hardware

  • Automatic current range selection: 100pA to 10A/1mV to 10V
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral analog signals
  • Real time data display up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Channel Configurations

Single-channel modules:

  • ±2.5A / ±10V (with BiStat optional)
  • ±5A / ±10V    (with BiStat optional)
  • ±10A / ±5V
  • ±20A / ±2V
  • ±2A / ±30V
  • ±1A / ±50V

Dual-channel modules:

  • 2 x ±1A / ±20V
  • 2 x ±2.5A / ±10V

Frame:

  • 40A to fit all channel configurations
  • 8 modules/16 channels per frame
  • Stackable up to 64 channels

Software

The Ivium-n-Stat is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

Ivium-n-Stat software control:

  • Control of separate channels individually
  • All channels simultaneously
  • Synchronous start
  • Data from different channels plotted individually or in 1 single graph
Read the full description

Specifications

Environment
PC requirements
Windows 8/10/11, with free USB port
Specifications subject to change, Ivium Technologies ©2024

Product gallery

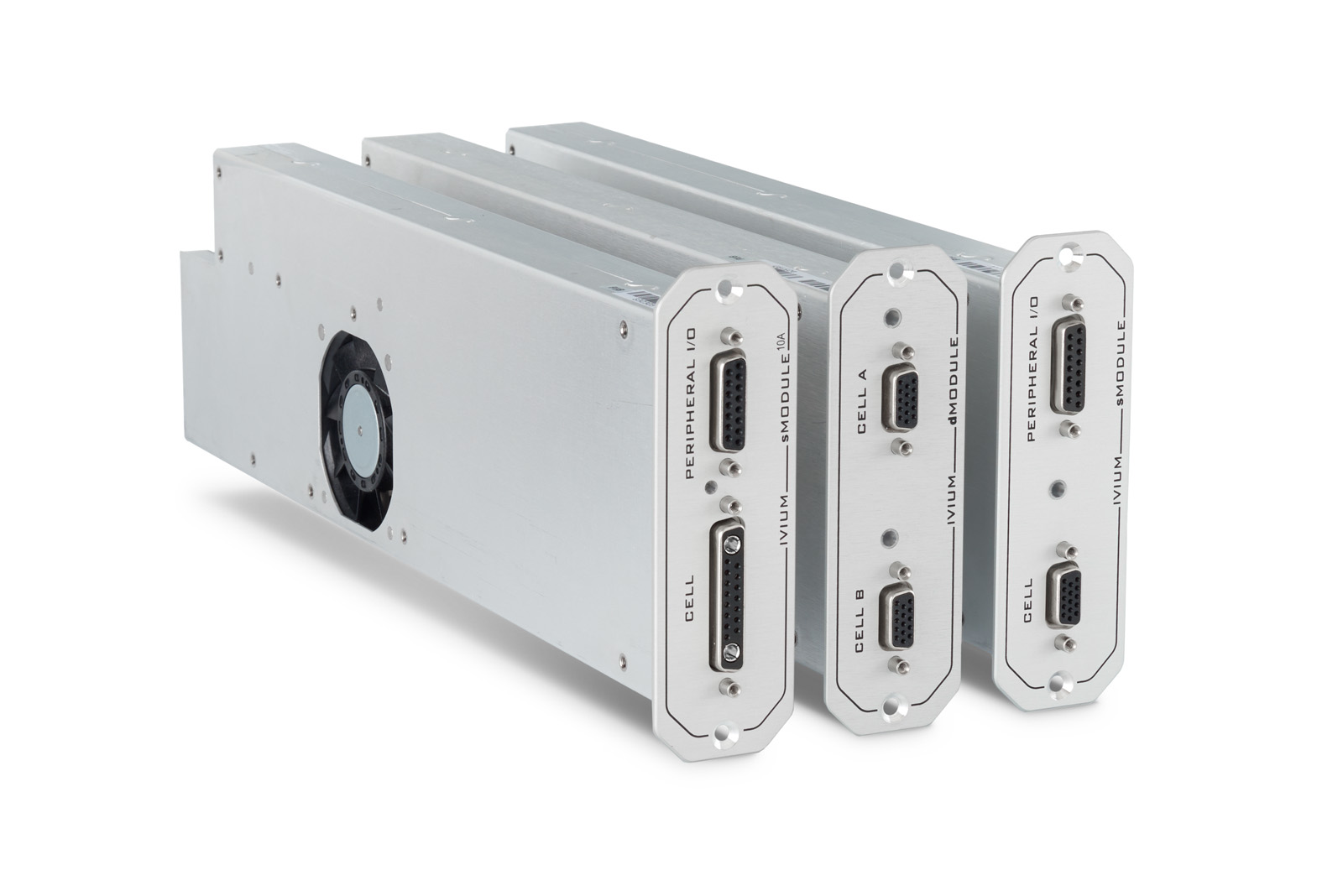

Modules

Available modules

sModule 2.5A/10V
sModule 5A/10V
sModule 10A/5V
sModule 20A/2V
dModule 2.5A/10V
dModule 1A/20V
System performance
Number of channels in module
1
1
1
1
2
2
Current compliance
±2.5A
±5A
±10A
±20A
±2.5A
±1A
Maximum compliance voltage
±10V
±10V
±5V
±2V
±10V
±20V
Maximum applied voltage
±10V
±10V
±5V
±2V
±10V
±10V
Potentiostat
Applied potential range
±10V, 0.08mV res.
±10V, 0.08mV res.
±5V, 0.08mV res.
±2V, 0.08mV res.
±10V, 0.08mV res.
±10V, 0.08mV res.
Current ranges
±100pA to ±10A
±100pA to ±10A
±100pA to ±10A
±100mA to ±10A
±100pA to ±1A
±100pA to ±1A
Measured current resolution
0.003% of current range, minimum 3fA
0.003% of current range, minimum 3fA
0.003% of current range, minimum 3fA
0.003% of current range, minimum 3µA
0.003% of current range, minimum 3fA
0.003% of current range, minimum 3fA
Galvanostat
Galvanostatic current ranges
±10nA to ±10A
±10nA to ±10A
±10nA to ±10A
±100mA to ±10A
±10nA to ±1A
±10nA to ±1A
Peripheral connections
Analog in/out
2/1 (±10V, inputs 18bit resolution, output 16bit resolution, bandwidth 40kHz)
2/1 (±10V, inputs 18bit resolution, output 16bit resolution, bandwidth 40kHz)
2/1 (±10V, inputs 18bit resolution, output 16bit resolution, bandwidth 40kHz)
-
±10V input only, 100GOhm, 18bit resolution, bandwidth 40kHz
±10V input only, 100GOhm, 18bit resolution, bandwidth 40kHz
Digital input/output
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
-
-
-
I-out/E-out
Analog monitor for cell current and potential
Analog monitor for cell current and potential
Analog monitor for cell current and potential
-
-
-
AC-in
±4V
±4V
±4V
-
-
-
AC-out
±0.5V sinewave 10µHz-250kHz with variable attenuation
±0.5V sinewave 10µHz-250kHz with variable attenuation
±0.5V sinewave 10µHz-250kHz with variable attenuation
-
-
-
Channel-X input, Channel-Y input
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
-
-
-
Peripheral port
Yes
Yes
Yes
-
-
-
Bipotentiostat (optional)
Current compliance (BiStat)
±35mA
±35mA
-
-
-
-
Applied potential offset
±2V with 0.06mV resolution wrt. RE or WE
±2V with 0.06mV resolution wrt. RE or WE
-
-
-
-
