Innovative solutions for electrochemical research

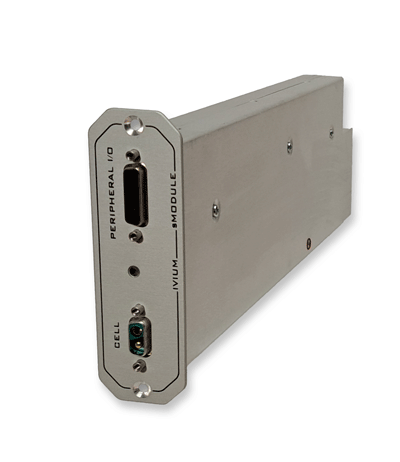

sModule20A

sModule 20A/2V

Available modules:

Single channel module for Ivium-n-Stat

Compliance on channel: ±20A/±2V

Integrated impedance analyser in each channel as standard: 10µHz - 250kHz (1MHz optional)

Buy from your local reseller (US):

Nanoscience Instruments

Request information

Product description

Module

The sModule 20A/2V is a single channel module for the Ivium-n-Stat which allows ±20A / ±2V compliance and has a dedicated integrated impedance analyser for this channel. IviumSoft allows control of separate channels or all channels simultaneously with a synchronized start. The module is encased in a protective housing for easy handling, and users can upgrade the number of channels in the Ivium-n-Stat in a simple plug and play manner.

The Vertex.20A has a peripheral port which it uses for connection to the RE and S cable. External interfacing and compatibility has some limitations when compared to the other Vertex instruments (see our compatibility table for reference).

Safety

The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Expandibility

External interfacing and compatibility can be seen on our compatibility table.

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral analog signals
  • Real time data display up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000 V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Channel Configurations

  • ±20A / ±2V
Read the full description

Specifications

System performance
Number of channels in module
1
Current compliance
±20A
Maximum compliance voltage
±2V
Maximum applied voltage
±2V
Electrode connections
4; WE, CE, RE, S (and GND) with 4mm banana plugs
Potentiostat bandwidth
>500kHz
Stability settings
High Speed, Standard and High Stability
Programmable response filter
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
Signal acquisition
Dual channel 18bit ADC, 300,000 samples/s stored in instrument memory (max. 1M datapoints)
Potentiostat
Applied potential range
±2V, 0.08mV res.
Applied potential accuracy
0.2%, or 2mV
Current ranges
±100pA to ±10A
Measured current resolution
0.003% of current range, minimum 3fA
Measured current accuracy
20pA + 0.025% of FSR
Galvanostat
Applied current resolution
0.008% of applied current range
Applied current accuracy
0.2%
Galvanostatic current ranges
±10nA to ±10A
Potential ranges
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
Measured potential resolution
0.0008% of potential range, minimum 7nV
Measured potential accuracy
0.2% or 2mV
Impedance Analyser
Frequency range
10µHz to 250kHz (optional: 10µHz to 1MHz)
Amplitude
0.15mV to 2.0V, or 0.03% to 100% of current range
DC offset
16bit DC offset subtraction and 2 DC-decoupling filters
Electrometer
Input impedance
>1000Gohm //<10pF
Input bias current
<20pA
Bandwidth
>5MHz
Special functions
Ohmic drop compensation
2V/current range
Environment
Size (w x d x h)
3 x 35 x 13cm
Weight
0.7kg
PC requirements
Windows 8/10/11, with free USB port
Specifications subject to change, Ivium Technologies ©2024

Available modules

sModule 2.5A/10V
sModule 5A/10V
sModule 10A/5V
sModule 20A/2V
dModule 2.5A/10V
dModule 1A/20V
System performance
Number of channels in module
1
1
1
1
2
2
Current compliance
±2.5A
±5A
±10A
±20A
±2.5A
±1A
Maximum compliance voltage
±10V
±10V
±5V
±2V
±10V
±20V
Maximum applied voltage
±10V
±10V
±5V
±2V
±10V
±10V
Potentiostat
Applied potential range
±10V, 0.08mV res.
±10V, 0.08mV res.
±5V, 0.08mV res.
±2V, 0.08mV res.
±10V, 0.08mV res.
±10V, 0.08mV res.
Current ranges
±100pA to ±10A
±100pA to ±10A
±100pA to ±10A
±100pA to ±10A
±100pA to ±1A
±100pA to ±1A
Galvanostat
Galvanostatic current ranges
±10nA to ±10A
±10nA to ±10A
±10nA to ±10A
±10nA to ±10A
±10nA to ±1A
±10nA to ±1A
Peripheral connections
Analog in/out
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
-
±10V input only, 100GOhm, 16bit resolution, bandwidth 40kHz
±10V input only, 100GOhm, 16bit resolution, bandwidth 40kHz
Digital input/output
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
-
-
-
I-out/E-out
Analog monitor for cell current and potential
Analog monitor for cell current and potential
Analog monitor for cell current and potential
-
-
-
AC-out
±0.5V sinewave 10µHz-250kHz with variable attenuation
±0.5V sinewave 10µHz-250kHz with variable attenuation
±0.5V sinewave 10µHz-250kHz with variable attenuation
-
-
-
Channel-X input, Channel-Y input
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
-
-
-
Peripheral port
Yes
Yes
Yes
-
-
-
Bipotentiostat (optional)
Current compliance (BiStat)
±35mA
±35mA
-
-
-
-
Applied potential offset
±2V with 0.06mV resolution wrt. RE or WE
±2V with 0.06mV resolution wrt. RE or WE
-
-
-
-
