vertex C

Vertex.C

Choose configuration:

Compliance: ±350mA/±13V

FRA/EIS: 10µHz to 1MHz as standard

Optional Bipotentiostat

Optional True Linear Scan generator

Buy from your local reseller (US):

Nanoscience Instruments

Contact resellerRequest information

Product description

Low cost solution

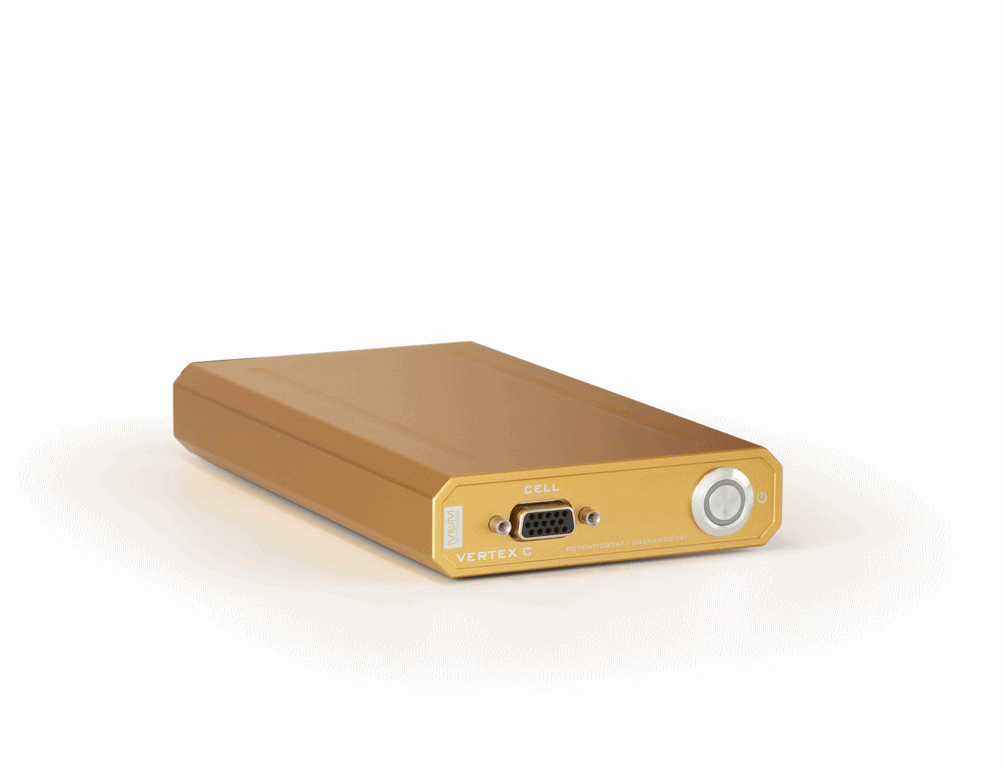

The Vertex.C is an all-round potentiostat/galvanostat/ZRA with FRA/EIS (not available as a DC-only instrument). Its low cost and wide specifications result in a versatile single-channel instrument, and multiple instruments are an attractive alternative to a multi-channel solution. The cell is connected with our standard shielded cell cable via the HD15 cell connector. The Vertex.C is capable of all standard electrochemical techniques and includes a complete suite of IviumSoft control and data processing software (for Windows based PCs).

Wide application range

The robust design, the wide specification range, the floating operation, and the availability of a wide range of electrochemical techniques makes the Vertex.C ideal for many applications, including:

  • educational
  • basic electrochemistry
  • batteries
  • corrosion
  • sensors

Expandability

The Vertex.C is supplied with FRA/EIS capability. The instrument can also be expanded with integrated Bipotentiostat and/or True Linear Scan module (contact Ivium/your local distributor for details).

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral signals
  • Real time data display up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Software Vertex.C

The Vertex.C is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

Read the full description

Specifications

System performance
Current compliance
±350mA
Maximum compliance voltage
±13V
Maximum applied voltage
±10V
Electrode connections
4; WE, CE, RE, S (and GND) with 4mm banana plugs
Potentiostat bandwidth
>500kHz
Stability settings
High Speed, Standard and High Stability
Programmable response filter
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
Signal acquisition
Dual channel 18bit ADC, 300,000 samples/s stored in instrument memory (max. 1M datapoints)
Potentiostat
Applied potential range
±10V, 0.08mV res.
Applied potential accuracy
0.2%, or 2mV
Current ranges
±100pA to ±100mA in 10 decades
Measured current resolution
0.003% of current range, minimum 3fA
Measured current accuracy
20pA + 0.025% of FSR
Galvanostat
Applied current resolution
0.008% of applied current range
Applied current accuracy
0.2%
Galvanostatic current ranges
±10nA to ±100mA
Potential ranges
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
Measured potential resolution
0.0008% of potential range, minimum 7nV
Measured potential accuracy
0.2% or 2mV
Impedance Analyser
Frequency range
10µHz to 1MHz
Amplitude
0.15mV to 2.0V, or 0.03% to 100% of current range
DC offset
16bit DC offset subtraction and 2 DC-decoupling filters
Electrometer
Input impedance
>1000Gohm //<10pF
Input bias current
<20pA
Bandwidth
>5MHz
Special functions
Ohmic drop compensation
2V/current range
Floating operation
User selectable
Peripheral connections
Analog in/out
±10V input only, 16bit resolution, bandwidth 40kHz
Bipotentiostat (optional)
Current compliance (BiStat)
±35mA
Applied potential offset
±2V with 0.06mV resolution wrt. RE or WE
Environment
Power requirements
100-240V, 45-65Hz, 25VA
Interfacing
USB
Size (w x d x h)
10 x 17 x 2.5cm
Weight
500g
PC requirements
Windows 8/10/11, with free USB port
Specifications subject to change, Ivium Technologies ©2024
