Innovative solutions for electrochemical research
portable potentiostat/galvanostat/ZRA

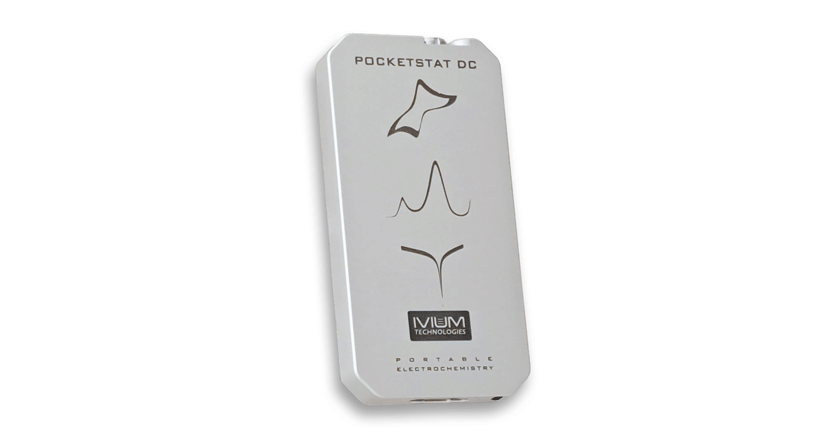

pocketSTAT.dc

Scan range: ±30mA/±10V

Size: 11.5 x 5.9 x 1.4cm

Weight: 125g

Buy from your local reseller (US):

Nanoscience Instruments

Contact resellerRequest information

Product description

Handheld
The pocketSTAT.dc is a portable potentiostat/galvanostat/ZRA which is capable of all standard DC electrochemical techniques. It is smaller and more-lightweight than a standard smart phone and is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.

Key specifications
– Size: 11.5 x 5.9 x 1.4cm
– Weight: 125g
– Scan range: ±10V/±30mA
– 3 Electrode connection: WE/CE/RE
– Max. acquisition rate: 1,000 pnts/s

Rugged design
The pocketSTAT.dc has a housing made of strong, yet lightweight aluminium.

Hardware

  • Automatic current range selection: 10nA to 10mA/10V
  • Real time data up to 1,000 pnts/s
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 1ms

Software:
The pocketSTAT.dc is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.

Read the full description

Specifications

System performance
Current compliance
±30mA
Maximum compliance voltage
±10V
Maximum applied voltage
±10V
Electrode connections
3; WE, CE, RE (and Analog In) with 4mm bananas
Potentiostat bandwidth
>1kHz
Signal acquisition
Dual channel 24bit ADC, 1,000 samples/s
Potentiostat
Applied potential range
±10V, with 0.33mV res.
Applied potential accuracy
0.2%, or 2mV
Current ranges
±10nA to ±10mA
Measured current resolution
0.0005% of current range, minimum 0.5fA
Measured current accuracy
20pA + 0.025% of FSR
Galvanostat
Applied current resolution
0.012% of applied current range
Applied current accuracy
0.2%
Galvanostatic current ranges
±10nA to ±10mA
Potential ranges
±10V
Measured potential resolution
1µV
Measured potential accuracy
0.2% or 2mV
Electrometer
Input impedance
>1000Gohm //<10pF
Input bias current
<20pA
Bandwidth
>100kHz
Peripheral connections
Analog in/out
±10V input only, 1000GOhm, 24bit resolution
Environment
Power requirements
Via USB
Interfacing
USB
Size (w x d x h)
11.5 x 5.9 x 1.4cm
Weight
125g
PC requirements
Windows 8/10/11, with free USB port
Specifications subject to change, Ivium Technologies ©2024
