Each channel: ±5A/±10V FRA/EIS: 10µHz-100kHz (1MHz optional)

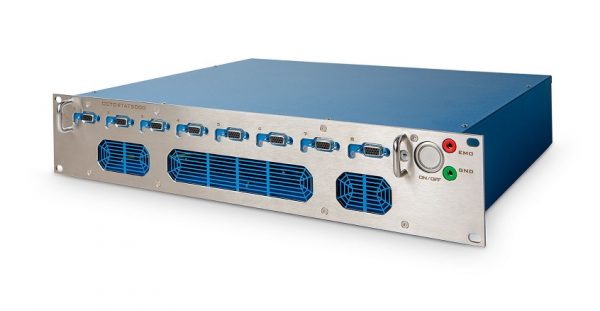

19" rack-mountable housing
Affordable high-spec electrochemical test system
You can buy this product from your local reseller:
Ivium Technologies B.V.Contact resellerRequest information
The instrument is designed for applications where multiple cells are operated in parallel for long periods of time, such as battery/fuel cell-testing, electrode development, biotechnology and corrosion.
The OctoStat offers a complete package. The hardware includes a built-in dedicated Frequency Response Analyser for each channel, low current measurement possibility down to 100pA full-scale with fA resolution, and an analog measurement channel for secondary signals such as temperature. All measurement and dataprocessing software is included.
The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.
Data security & Connection
The OctoStat is equipped with an integrated DataSecure module:
The OctoStat is controlled via Ivium’s own software, IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. The OctoStat can also be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of software is included as standard with each instrument.
