pocketSTAT2.LC

pocketSTAT2.LC

Scan range: ±30mA/±10V

FRA/EIS: 10µHz-1MHz

Low current ranges down to 10pA

Size: 22.3 x 6.7 x 1.9cm

Weight: 350g

Buy from your local reseller (US):

Nanoscience Instruments

Request information

Product description

Handheld
The pocketSTAT2.LC is a portable potentiostat that offers the same excellent, portable handheld pocketSTAT2 instrument but with 3 extra real current ranges down to 10pA. It is the size and weight of a smart phone and it is controlled via a USB connection from any netbook, laptop or PC that is Windows operated.

Key specifications

  • Size: 22.3 x 6.7 x 1.9cm
  • Weight: 350g
  • Scan range: ±30mA/±10V
  • Current ranges 10pA to 10mA
  • 3 Electrode connection: WE/CE/RE and GND with special low current cell cable
  • Max. acquisition rate: 100,000 pnts/s

Rugged design
The pocketSTAT2.LC has a housing made of strong, yet lightweight aluminium.

Hardware

  • Automatic current range selection: 10pA to 10mA/1mV to 10V
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Real time data up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimalisation by automated tuned filters, gain amplifiers and DC-subtraction

Software:
The pocketSTAT2.LC is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.

Read the full description

Specifications

System performance
Current compliance
±30mA
Maximum compliance voltage
±10V
Maximum applied voltage
±10V
Electrode connections
3; WE, CE, RE (and GND) with 4mm bananas
Potentiostat bandwidth
>500kHz
Stability settings
High Speed, Standard and High Stability
Programmable response filter
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
Signal acquisition
Dual channel 18bit ADC, 300,000 samples/s stored in instrument memory (max. 1M datapoints)
Potentiostat
Applied potential range
±10V, 0.08mV res.
Applied potential accuracy
0.2%, or 2mV
Current ranges
±10pA to ±10mA in 10 decades
Measured current resolution
0.003% of current range, minimum 0.3fA
WE bias current
20fA
Measured current accuracy
20pA + 0.025% of FSR
Galvanostat
Applied current resolution
0.008% of applied current range
Applied current accuracy
0.2%
Galvanostatic current ranges
±10pA to ±10mA
Potential ranges
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
Measured potential resolution
0.0008% of potential range, minimum 7nV
Measured potential accuracy
0.2% or 2mV
Impedance Analyser
Frequency range
10µHz to 1MHz
Amplitude
0.15mV to 2.0V, or 0.03% to 100% of current range
DC offset
16bit DC offset subtraction and 2 DC-decoupling filters
Electrometer
Input impedance
>1000Gohm //<10pF
Input bias current
<20pA
Bandwidth
>5MHz
Special functions
Ohmic drop compensation
2V/current range
Environment
Power requirements
Via USB
Interfacing
USB
Size (w x d x h)
22.3 x 6.7 x 1.9cm
Weight
350g
PC requirements
Windows 8/10/11, with free USB port
Specifications subject to change, Ivium Technologies ©2024

Brochure

Download pocketSTAT2.LC Flyer

Product gallery

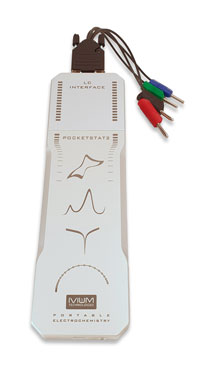

pocketSTAT2.LC with cable

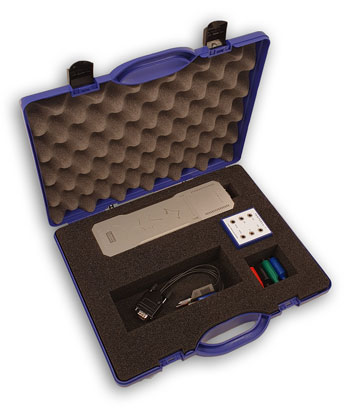

pocketSTAT2.LC with case

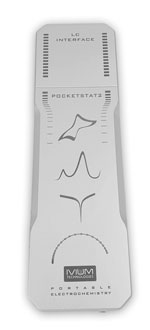

pocketSTAT2.LC
