Dual channel module for Ivium-n-Stat
Compliance on each channel: ±1A/±20V
Integrated impedance analyser in each channel as standard: 10µHz - 250kHz (1MHz optional)
You can buy this product from your local reseller:
Ivium Technologies B.V.Contact resellerRequest information

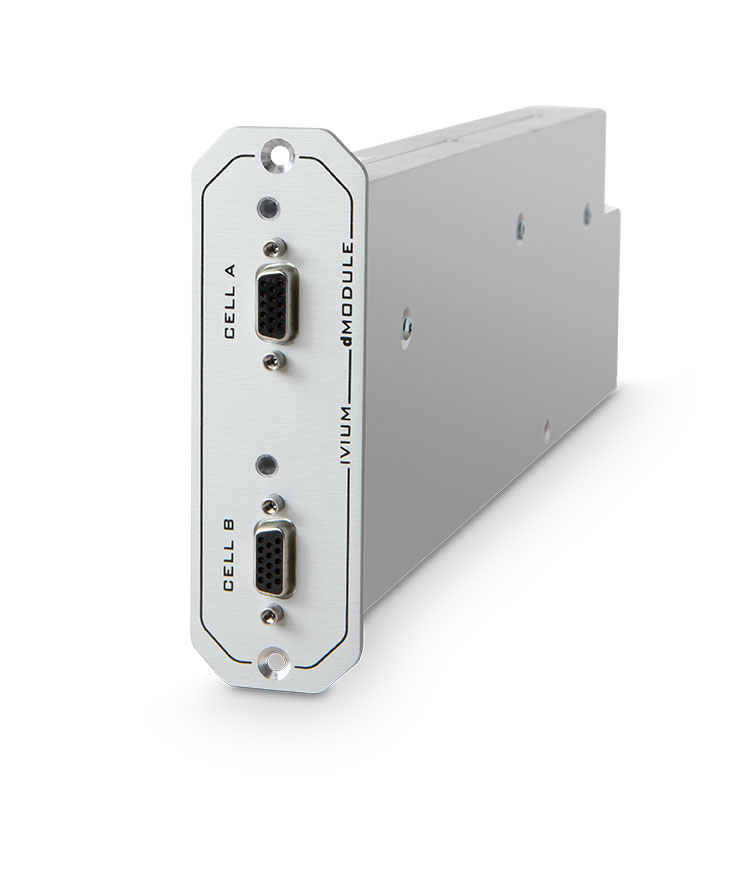

The dModule 1A/20V is a dual channel module for the Ivium-n-Stat which allows ±1A / ±20V compliance (±10V applied) and simultaneous impedance measurements on each channel. IviumSoft allows control of separate channels or all channels simultaneously with a synchronized start. The module is encased in a protective housing for easy handling, and users can upgrade the number of channels in the Ivium-n-Stat in a simple plug and play manner.
The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.
Each channel can be expanded with various modules, such as a power booster, multiplexer, etc. See our compatibility table for reference.
