Multi-channel booster OctoBoost16000

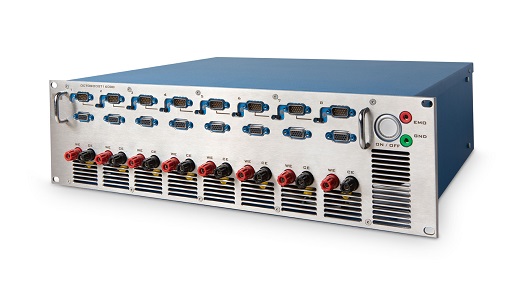

OctoBoost16000

Choose configuration:

Each channel: ±16A/±5V (or -2 to +9V) FRA/EIS: 10µHz-10kHz

Booster up to ±128A (combinable channels)

19" rack-mountable housing

Affordable high-specification electrochemical test system

Buy from your local reseller (US):

Nanoscience Instruments

Request information

Product description

Complete solution

The OctoBoost16000 offers a flexible high current solution for both the OctoStats or Ivium single channel instruments. In combination with an OctoStat, the 16A channels on the booster can be combined (as long as the channels are neighbouring) to give a variable max current up to 128A (e.g. 8 x ±16A, 4 x ±32A, 2 x ±64A, 1 x ±64A and 4 x ±16A, 1 x 128A, etc.). This configuration is also possible with multiple single-channel instruments. In combination with a single channel instrument, the OctoBoost16000 functions as a booster for currents up to 128A.

Safety

The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Hardware

  • Current range: 10A and 100A

Software

The OctoStat/OctoBoost16000 is controlled via Ivium’s own software, IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, etc. The OctoStat can also be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of software is included as standard with each instrument.

  • Control of separate channels individually
  • All channels simultaneously
  • Synchronous start
  • Data from different channels plotted individually or in 1 single graph
Read the full description

Specifications

System performance
Current compliance
±16A
Maximum compliance voltage
-2 to +9V, or ±5V (user selectable)
Maximum applied voltage
-2 to +9V, or ±5V (user selectable)
Channel combination
Yes
Channel combination configuration
Neighbouring channels combinable, e.g. 4 x ±32A, 2 x ±64A, 1 x ±64A and 4 x ±16A, 1 x ±128A, etc.
Potentiostat
Current ranges
±10A and ±100A
Measured current accuracy
0.025% of FSR
Impedance Analyser
Frequency range
10µHz to 10kHz
Amplitude
From controlling potentiostat
Environment
Module height
3U
Specifications subject to change, Ivium Technologies ©2024

Model comparison

OctoStat30
OctoStat200
OctoStat5000
OctoBoost16000
System performance
Current compliance
±30mA
±200mA
±5A
±16A
Maximum compliance voltage
±10V
±10V
±10V
-2 to +9V, or ±5V (user selectable)
Maximum applied voltage
±10V
±10V
±10V
-2 to +9V, or ±5V (user selectable)
Electrode connections
4; WE, CE, RE, S (and GND) with 4mm banana plugs
4; WE, CE, RE, S (and GND) with 4mm banana plugs
4; WE, CE, RE, S (and GND) with 4mm banana plugs
-
Potentiostat bandwidth
>500kHz
>500kHz
>500kHz
-
Stability settings
High Speed, Standard and High Stability
High Speed, Standard and High Stability
High Speed, Standard and High Stability
-
Programmable response filter
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
-
Signal acquisition
Dual channel 18bit ADC, 300,000 samples/s stored in instrument memory (max. 1M datapoints)
Dual channel 18bit ADC, 300,000 samples/s stored in instrument memory (max. 1M datapoints)
Dual channel 18bit ADC, 300,000 samples/s stored in instrument memory (max. 1M datapoints)
-
Channel combination
No
No
No
Yes
Channel combination configuration
-
-
-
Neighbouring channels combinable, e.g. 4 x ±32A, 2 x ±64A, 1 x ±64A and 4 x ±16A, 1 x ±128A, etc.
Potentiostat
Applied potential range
±10V, 0.08mV res.
±10V, 0.08mV res.
±10V, 0.08mV res.
-
Applied potential accuracy
0.2%, or 2mV
0.2%, or 2mV
0.2%, or 2mV
-
Current ranges
±100pA to ±10mA in 9 decades
±100pA to ±100mA in 10 decades
±100pA to ±10A
±10A and ±100A
Measured current resolution
0.003% of current range, minimum 3fA
0.003% of current range, minimum 3fA
0.003% of current range, minimum 3fA
-
Measured current accuracy
20pA + 0.025% of FSR
20pA + 0.025% of FSR
20pA + 0.025% of FSR
0.025% of FSR
Galvanostat
Applied current resolution
0.008% of applied current range
0.008% of applied current range
0.008% of applied current range
-
Applied current accuracy
0.2%
0.2%
0.2%
-
Galvanostatic current ranges
±10nA to ±10mA
±10nA to ±100mA
±10nA to ±10A
-
Potential ranges
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
-
Measured potential resolution
0.0008% of potential range, minimum 7nV
0.0008% of potential range, minimum 7nV
0.0008% of potential range, minimum 7nV
-
Measured potential accuracy
0.2% or 2mV
0.2% or 2mV
0.2% or 2mV
-
Impedance Analyser
Frequency range
10µHz to 100kHz (1MHz optional)
10µHz to 100kHz (1MHz optional)
10µHz to 100kHz (1MHz optional)
10µHz to 10kHz
Amplitude
0.15mV to 2.0V, or 0.03% to 100% of current range
0.15mV to 2.0V, or 0.03% to 100% of current range
0.15mV to 2.0V, or 0.03% to 100% of current range
From controlling potentiostat
DC offset
16bit DC offset subtraction and 2 DC-decoupling filters
16bit DC offset subtraction and 2 DC-decoupling filters
16bit DC offset subtraction and 2 DC-decoupling filters
-
Electrometer
Input impedance
>1000Gohm //<10pF
>1000Gohm //<10pF
>1000Gohm //<10pF
-
Input bias current
<20pA
<20pA
<20pA
-
Bandwidth
>5MHz
>5MHz
>5MHz
-
Special functions
Ohmic drop compensation
2V/current range
2V/current range
2V/current range
-
Peripheral connections
Analog in/out
2 per channel (±10V, 16bit resolution, bandwidth 40kHz)
2 per channel (±10V, 16bit resolution, bandwidth 40kHz)
2 per channel (±10V, 16bit resolution, bandwidth 40kHz)
-
Data Acquisition
Data acquisition time
3.33µs min.
3.33µs min.
3.33µs min.
-
Stored no. of datapoints
20M each channel
20M each channel
20M each channel
-
Environment
Interfacing
USB/LAN (Ethernet)
USB/LAN (Ethernet)
USB/LAN (Ethernet)
-
PC requirements
Windows 8/10/11, with free USB port
Windows 8/10/11, with free USB port
Windows 8/10/11, with free USB port
-
Module height
1U
1U
2U
3U
Integrated DataSecure
Data acquisition time: 2ms minimum, Stored no. of data points: 20M each channel
Data acquisition time: 2ms minimum, Stored no. of data points: 20M each channel
Data acquisition time: 2ms minimum, Stored no. of data points: 20M each channel
-
