IviumBoost205

IviumBoost1010 (10V/10A)

Choose configuration:

Range: ±10A @ ±10V

FRA/EIS: 10µHz to 100kHz

Buy from your local reseller (US):

Nanoscience Instruments

Request information

Product description

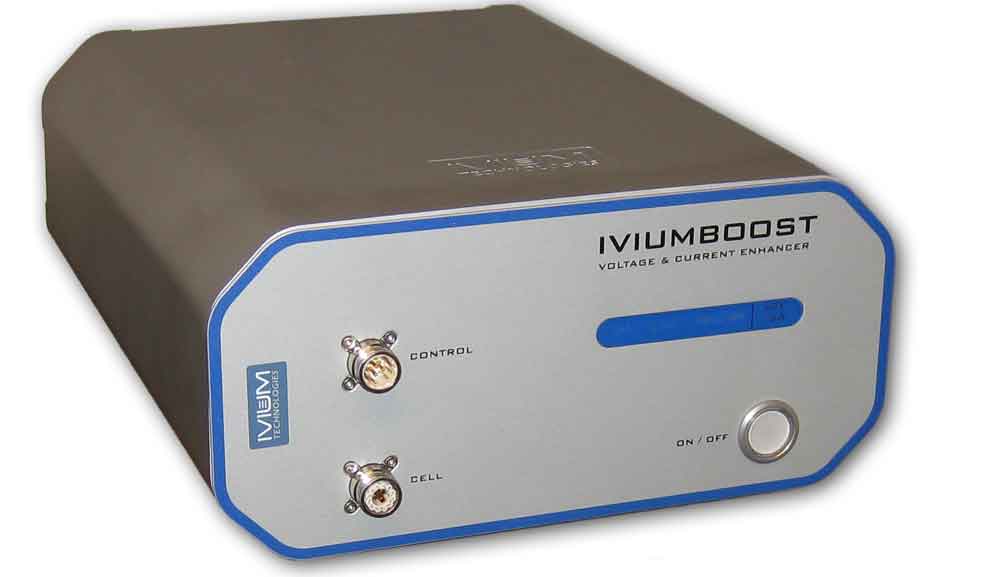

The IviumBoost1010 is a power booster can increase the current of the Ivium potentiostat to ±10A. The booster is connected in front of the P/G in-line with the cell cable. A shielded high-current compliant cell cable is supplied. The operation is fully integrated in the IviumSoft.

The IviumBoost1010 is a separate external instrument and has full potentiostat-galvanostat-ZRA capability. It can be purchased at the initial order of your Ivium potentiostat, but can of course also be ordered at a later time. For example when the emphasis of your research shifts to higher power requirements, an IviumBoost1010 will be ideal to enhance the capability of your Ivium potentiostat. This is of particular interest for battery research, and fuel cell applications (as well as electrolysis, corrosion, deposition, etc.) where a higher current is required.

Read the full description

Specifications

System performance
Current compliance
±10A
Maximum compliance voltage
±10V
Maximum applied voltage
±10V
FRA/EIS
10µHz to 100kHz
Potentiostat
Current ranges
Defined by controlling potentiostat
Electrometer
Bandwidth
>100kHz
Environment
Size (w x d x h)
26 x 33 x 12cm
Weight
5.7kg
Specifications subject to change, Ivium Technologies ©2024

Model comparison

IviumBoost10012 (100A/12V)
IviumBoost1010 (10V/10A)
IviumBoost205 (20V/5A)
IviumBoost1001 (100V/0.6A)
System performance
Current compliance
±100A
±10A
±5A
±0.6A
Maximum compliance voltage
±12V
±10V
±20V
±100V
Maximum applied voltage
±10V
±10V
±20V
±100V
Potentiostat
Current ranges
±10A and ±100A
Defined by controlling potentiostat
Defined by controlling potentiostat
Defined by controlling potentiostat
Environment
Power requirements
100-240V, 50-60Hz, 1500W
-
-
-
Size (w x d x h)
47 x 36 x 14cm
26 x 33 x 12cm
26 x 33 x 12cm
26 x 33 x 12cm
Weight
13kg
5.7kg
5.7kg
5.7kg
