Innovative solutions for electrochemical research

High power boosters

Choose configuration:

Available up to 100A

Available up to 100V

You can buy this product from your local reseller:

Ivium Technologies B.V.

Contact resellerRequest information

Product description

The IviumBoost series of instruments are power boosters that have been designed to increase the potential and/or current of Ivium potentiostat/galvanostat/ZRAs. The booster is connected in front of the P/G in-line with the cell cable. The operation is fully integrated in the IviumSoft.

To check if a particular IviumBoost is compatible with your designated instrument, click here.

The IviumBoost is a separate external instrument and has full potentiostat-galvanostat-ZRA capability. It can be purchased at the initial order of your Ivium potentiostat, but can of course also be ordered at a later time. For example when the emphasis of your research shifts to higher power requirements, an IviumBoost will be ideal to enhance the capability of your Ivium potentiostat.

Read the full description

Model comparison

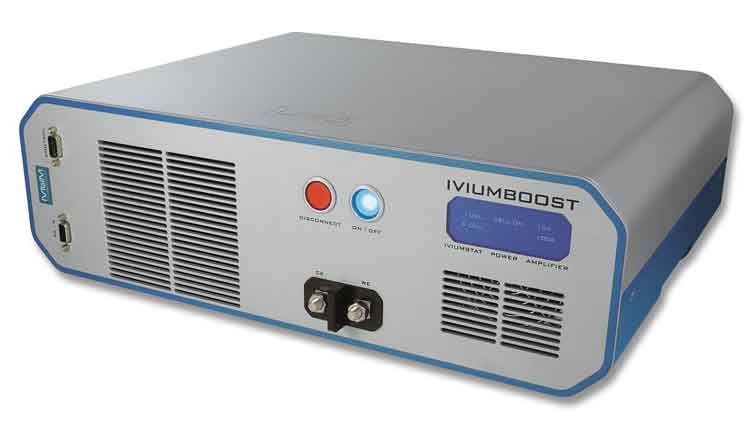

IviumBoost10012 (100A/12V)
IviumBoost1040 (10V/40A) – Discontinued product
IviumBoost1010 (10V/10A)
IviumBoost205 (20V/5A)
IviumBoost1001 (100V/0.6A)
System performance
Current compliance
±100A
±40A
±10A
±5A
±0.6A
Maximum output voltage
±10V
±10V
±10V
±20V
±100V
Maximum compliance voltage
±12V
±10V
±10V
±20V
±100V
Potentiostat
Current ranges
±10A and ±100A
Defined by controlling potentiostat
Defined by controlling potentiostat
Defined by controlling potentiostat
Defined by controlling potentiostat
Environment
Power requirements
100-240V, 50-60Hz, 1500W
100-240V, 50-60Hz, 1000W
-
-
-
Size (w x d x h)
47 x 36 x 14cm
47 x 36 x 14cm
26 x 33 x 12cm
26 x 33 x 12cm
26 x 33 x 12cm
Weight
13kg
16kg
5.7kg
5.7kg
5.7kg
