VertexS entry level potentiostat/galvanostat with optional FRA/EIS

Vertex.50V1A

Choose configuration:

Compliance: ±1A/±50V (±10V applied)

Optional FRA/EIS: 10µHz to 1MHz

Optional True Linear Scan generator

Buy from your local reseller (US):

Nanoscience Instruments

Request information

Product description

Instrument

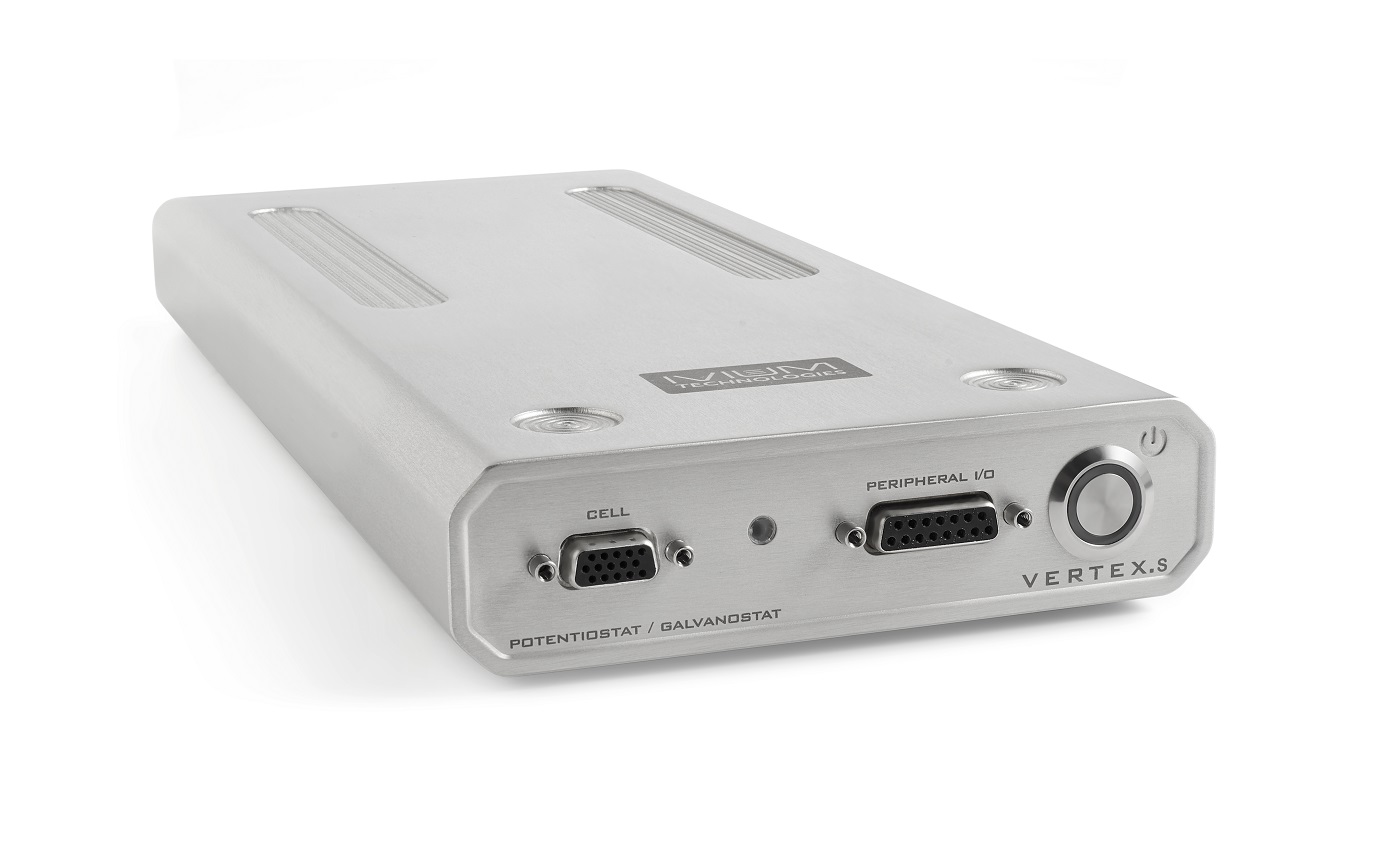

The Vertex.50V1A is a versatile entry-level potentiostat which has ±1A / ±50V compliance and optional integrated impedance analyser up to 1MHz.

Automation

The Vertex.50V1A has a peripheral port to allow external interfacing and compatibility with several Ivium modules (see expandability).

Expandability

The Vertex can optionally be expanded with a True Linear Scan module, and/or FRA/EIS capability. Next to that the Vertex is compatible with other Ivium options and modules, such as the uMUX, eExtender, and CIM, and several Ivium boosters for higher power requirements.

Hardware

  • Automatic current range selection over all available current ranges
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and peripheral signals
  • Real time data display up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time: 3.33µs (0.125µs resolution)
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction
  • User selectable floating operation

Software

The Vertex is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software package allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included with each instrument as standard.

Read the full description

Specifications

System performance
Number of channels in instrument
1
Current compliance
±1A
Maximum compliance voltage
±50V
Maximum applied voltage
±10V
Electrode connections
4; WE, CE, RE, S (and GND) with 4mm banana plugs
Potentiostat bandwidth
>500kHz
Stability settings
High Speed, Standard and High Stability
Programmable response filter
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
Signal acquisition
Dual channel 18bit ADC, 300,000 samples/s stored in instrument memory (max. 1M datapoints)
Potentiostat
Applied potential range
±10V, 0.08mV res.
Applied potential accuracy
0.2%, or 2mV
Current ranges
±100pA to ±1A
Measured current resolution
0.003% of current range, minimum 3fA
Measured current accuracy
20pA + 0.025% of FSR
Galvanostat
Applied current resolution
0.008% of applied current range
Applied current accuracy
0.2%
Galvanostatic current ranges
±10nA to ±1A
Potential ranges
±1mV, ±4mV, ±10mV, ±40mV, ±100mV, ±400mV, ±1V, ±4V, ±10V
Measured potential resolution
0.0008% of potential range, minimum 7nV
Measured potential accuracy
0.2% or 2mV
Impedance Analyser
Frequency range
10µHz to 1MHz
Amplitude
0.15mV to 2.0V, or 0.03% to 100% of current range
DC offset
16bit DC offset subtraction and 2 DC-decoupling filters
Electrometer
Input impedance
>1000Gohm //<10pF
Input bias current
<20pA
Bandwidth
>5MHz
Special functions
Ohmic drop compensation
2V/current range
Floating operation
User selectable
Peripheral connections
Analog in/out
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
Digital input/output
1 input (0-5V) / 3 output (0-3.3V)
I-out/E-out
Analog monitor for cell current and potential
AC-out
±0.5V sinewave, 10µHz-1MHz with var. att.
Channel-X input, Channel-Y input
±4V: to record impedance from peripheral devices
Environment
Power requirements
100-240V, 50-60Hz, 2A
Interfacing
USB
Size (w x d x h)
15 x 36 x 4.5cm
Weight
2.5kg
PC requirements
Windows 8/10/11, with free USB port
Specifications subject to change, Ivium Technologies ©2024

Product gallery

Vertex stack

Model comparison

Vertex.5A
Vertex.10A
Vertex.30V
Vertex.30V1A
Vertex.50V1A
Vertex.20A
System performance
Current compliance
±5A
±10A
±2A
±1A
±1A
±20A
Maximum compliance voltage
±10V
±5V
±30V
±30V
±50V
±2V
Maximum applied voltage
±10V
±5V
±10V
±10V
±10V
±2V
Potentiostat
Applied potential range
±10V, 0.08mV res.
±5V, 0.08mV res.
±10V, 0.08mV res.
±10V, 0.08mV res.
±10V, 0.08mV res.
±2V, 0.08mV res.
Current ranges
±100pA to ±10A
±100pA to ±10A
±100pA to ±1A
±100pA to ±1A
±100pA to ±1A
±100pA to ±10A
Galvanostat
Galvanostatic current ranges
±10nA to ±10A
±10nA to ±10A
±10nA to ±1A
±10nA to ±1A
±10nA to ±1A
±10nA to ±10A
Peripheral connections
Analog in/out
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
2/1 (±10V, 16bit resolution, bandwidth 40kHz)
-
Digital input/output
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
1 input (0-5V) / 3 output (0-3.3V)
-
I-out/E-out
Analog monitor for cell current and potential
Analog monitor for cell current and potential
Analog monitor for cell current and potential
Analog monitor for cell current and potential
Analog monitor for cell current and potential
-
AC-out
±0.5V sinewave, 10µHz-1MHz with var. att.
±0.5V sinewave, 10µHz-1MHz with var. att.
±0.5V sinewave, 10µHz-1MHz with var. att.
±0.5V sinewave, 10µHz-1MHz with var. att.
±0.5V sinewave, 10µHz-1MHz with var. att.
-
Channel-X input, Channel-Y input
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
±4V: to record impedance from peripheral devices
-
Bipotentiostat (optional)
Current compliance (BiStat)
±35mA
-
-
-
-
-
Applied potential offset
±2V with 0.06mV resolution wrt. RE or WE
-
-
-
-
-
Environment
Power requirements
100-240V, 50-60Hz, 2A
100-240V, 50-60Hz, 4A
100-240V, 50-60Hz, 2A
100-240V, 50-60Hz, 2A
100-240V, 50-60Hz, 2A
100-240V, 50-60Hz, 2A
Weight
2.5kg
3kg
2.5kg
2.5kg
2.5kg
2.5kg
