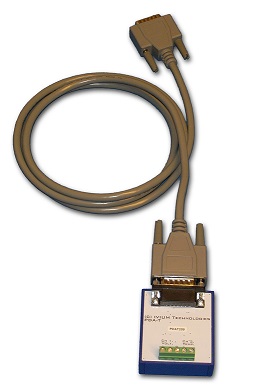

The PDA-T module is a combination of the sPDA and TCM-K modules and facilitates the connection to the peripheral port to allow the simultaneous recording of 1 differential high-ohmic external voltage and 1 temperature.
Technical specifications
1 differential high-ohmic analog input:
- Each channel can measure the difference between + and – inputs up to ±10V
- The maximum allowed common mode voltage is ±12V. This means that the potential of the inputs may have up to 12V difference from the instrument gnd (Agnd)
- Each input + and – has a very high input resistance: > 1E12 Ohm
- Port interfacing: the voltage signal transfers to analog input1 of the potentiostat peripheral port
1 temperature signal:
- Suitable for K-type thermocouples
- The input of the thermocouple module is not isolated from the potentiostat’s ground. If isolation of the thermocouple is required, a thermocouple with isolated tip should be used
- Temperature range: 10 to 900C
- Measurement accuracy:
- 10 to 400C is ±2C
- >400C is ±1.6%
- The PDA-T can be used in ambient temperatures: 0 to 50C
- Output signal: analog output voltage of 5mV/C
- Port interfacing: the voltage signal transfers to analog input2 of the potentiostat peripheral port
