The Ivium Technologies MUX32 multiplexer facilitates the connection of a single-channel Ivium potentiostat to a Multi Electrode Assembly (MEA), or to multiple working electrodes sharing a single counter and reference electrode.

The MUX32 requires an Ivium potentiostat with standard cell connector (HD15) for operation. Each MUX32 has 32 channels and multiple units can be stacked to allow up to 256 channels can be controlled sequentially by a single potentiostat.

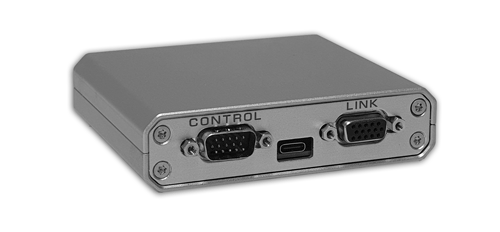

MUX32

• 32 independent channels per module
• max. voltage is ±10V @ ±30mA
• bandwidth 1MHz
• stackable up to 8 modules with a total of 256 channels
• HD15 interfacing to Ivium potentiostat cell connector

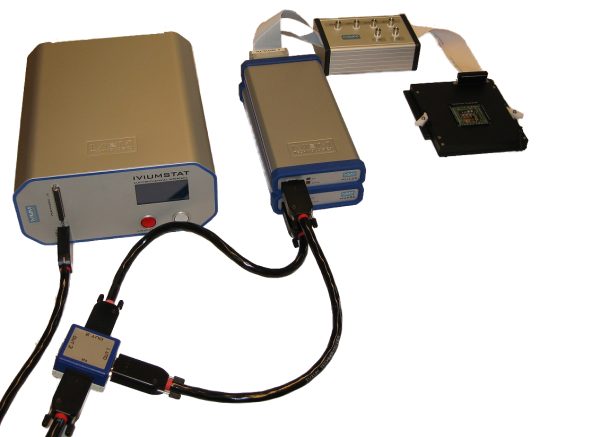

The MUX32 can be used as (part of) a Multi Electrode Assembly solution and information of this configuration is available from Ivium upon request (see example in MEA user guide).
