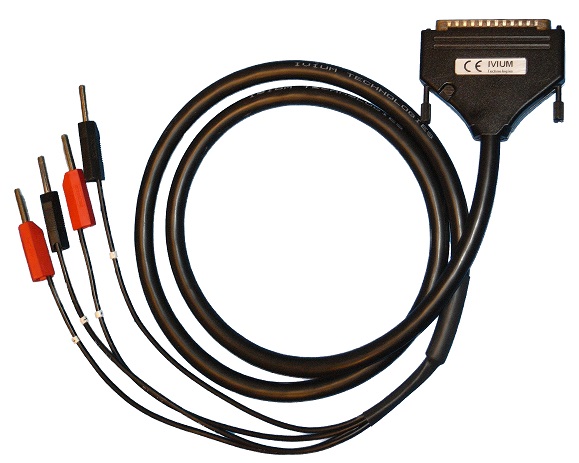

The mPDA, or miniPDA, is a 2 channel version of the Peripheral Differential Amplifier (PDA). It has 2 analog inputs for simultaneous recording of differential bipolar high-ohmic external voltages, such as reference or pH meters. The mPDA is integrated in a cable that connects directly to the peripheral port.

The cable ends in 4 banana’s (4mm) and is available in two different versions, one for the CompactStat/IviumStat and one for the sModule/Vertex (only if periph. port is available, for compatibility see also in the table).

Technical specifications:

• Each cable facilitates recording of up to 2 differential channels
• Cable length 1.3m; 1 black/red banana pair for each channel
• Differential measurement range: ±10 V
• Maximum common mode voltage: ±12 V
• Input impedance: > 10^12 Ohm
