The Ivium Multi Electrode Assembly (MEA) set up facilitates the connection of  single-channel Ivium potentiostat to a multi electrode assembly.

The Ivium MEA consists of :

• A single-channel potentiostat/galvanostat with integrated EIS
• Multiple MUX32 multiplexer modules
• Junction box and connector cables
• Breakout box
• MEA adapter

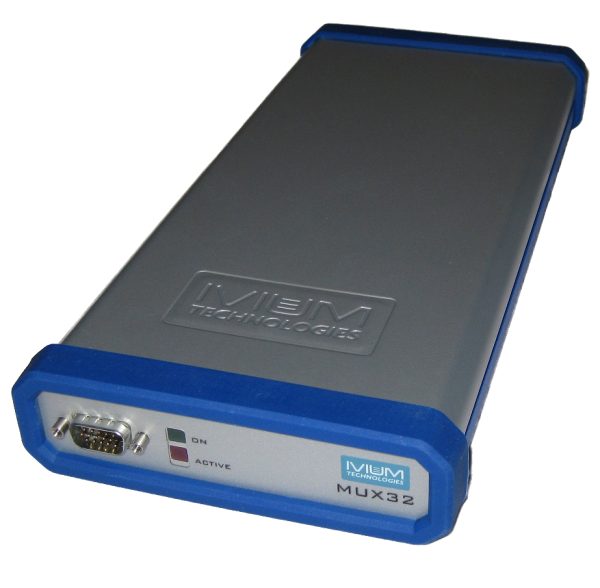

Multiple MUX32 multiplexer modules are stacked to meet the required number of channels. The specifications of the MUX32 are below:

• 32 independent channels per module
• max. voltage is ±10V @ ±1mA
• max. current protected with a 100Ohm resistor in series with CE
• bandwidth 10kHz
• Stackable up to 8 modules with a total of 256 channels

Information of a customer MEA is available from Ivium upon request (see example in MEA user guide).
