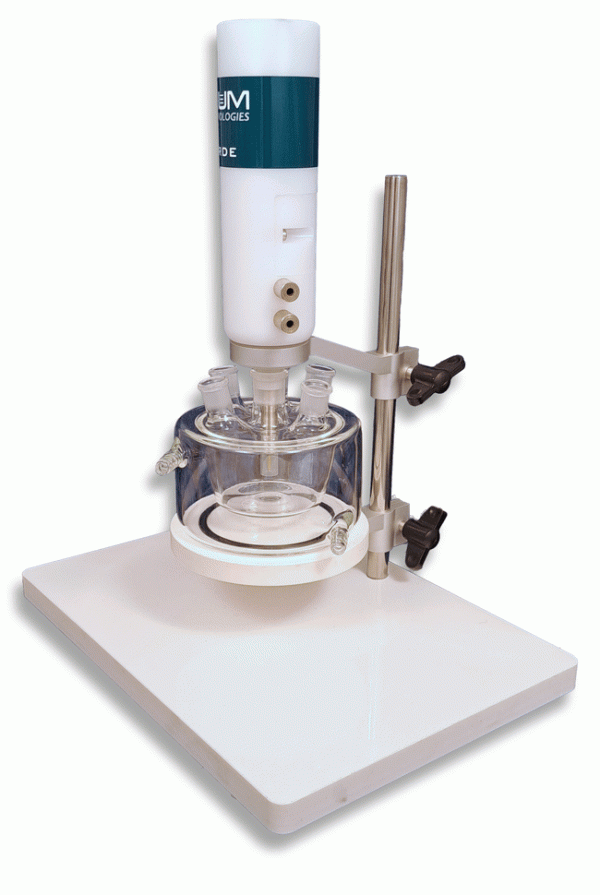

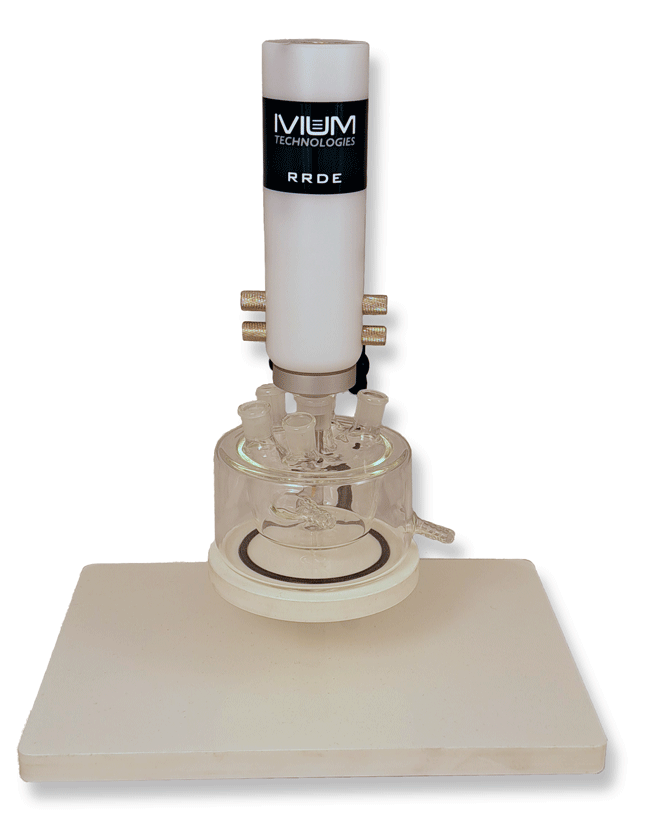

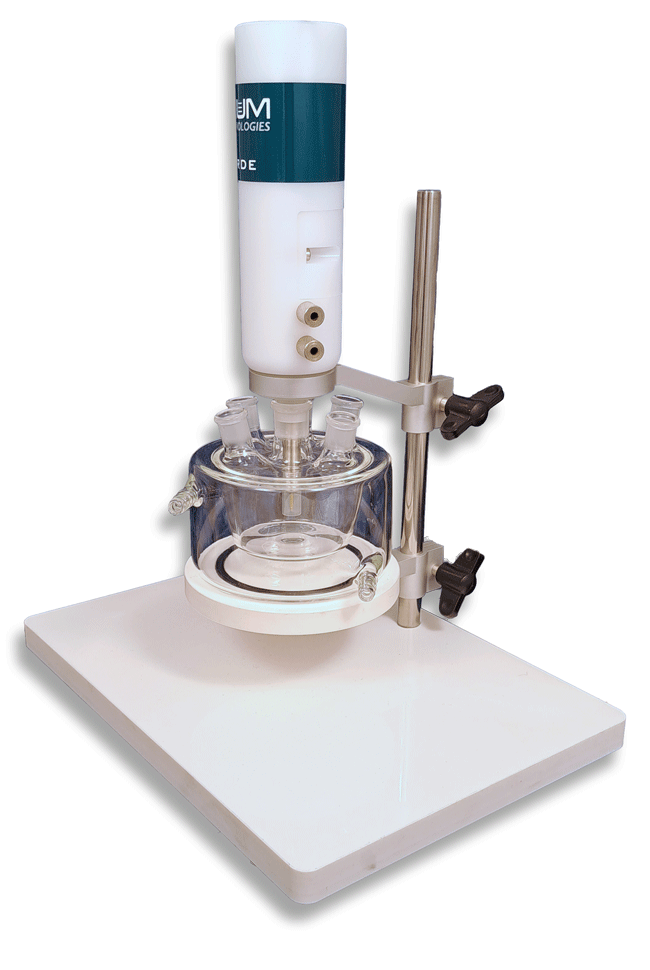

Ivium rotator apparatus for RDE and RRDE measurements
The IviumRRDE apparatus is a robust rotator for hydrodynamic electrochemical applications to be used in combination with a potentiostat. It can be used for both disk (RDE: Rotating Disk Electrode) and ring-disk (RRDE: Rotating Ring Disk Electrode) measurements. The combination with Ivium (bi-) potentiostats is recommended as the control is fully integrated in IviumSoft. However, the IviumRRDE can be used with any other suitable potentiostat.
The rotation speed can be controlled with up/down buttons on the front panel of the control box, or from an external analog signal. The applied and measured rotation speeds are also displayed on the front panel.
Information on purchasing tips for RDE and RRDE experiments can be found here.
The IviumRRDE apparatus kit includes:
• Rotator with driveshaft and brush assembly (no tips included):
• Motor-controller unit
• Connection cable
• Power supply 100-240V
• Rotator mounting bracket
• Easy carry hard case
Instrument specifications
Rotation range: 100-10,000 rpm
Applied resolution: 1 rpm
Measured accuracy: 0.02 rpm (averaged and settled)
Rotation stability: <1% (within 1 second)
Analog control: 1 rpm/mV or 2.5 rpm/mV , via BNC connector
Electrode contacts: 4 x 4mm banana sockets
Operating temperature: 10 to 40 °C
Instrument dimensions

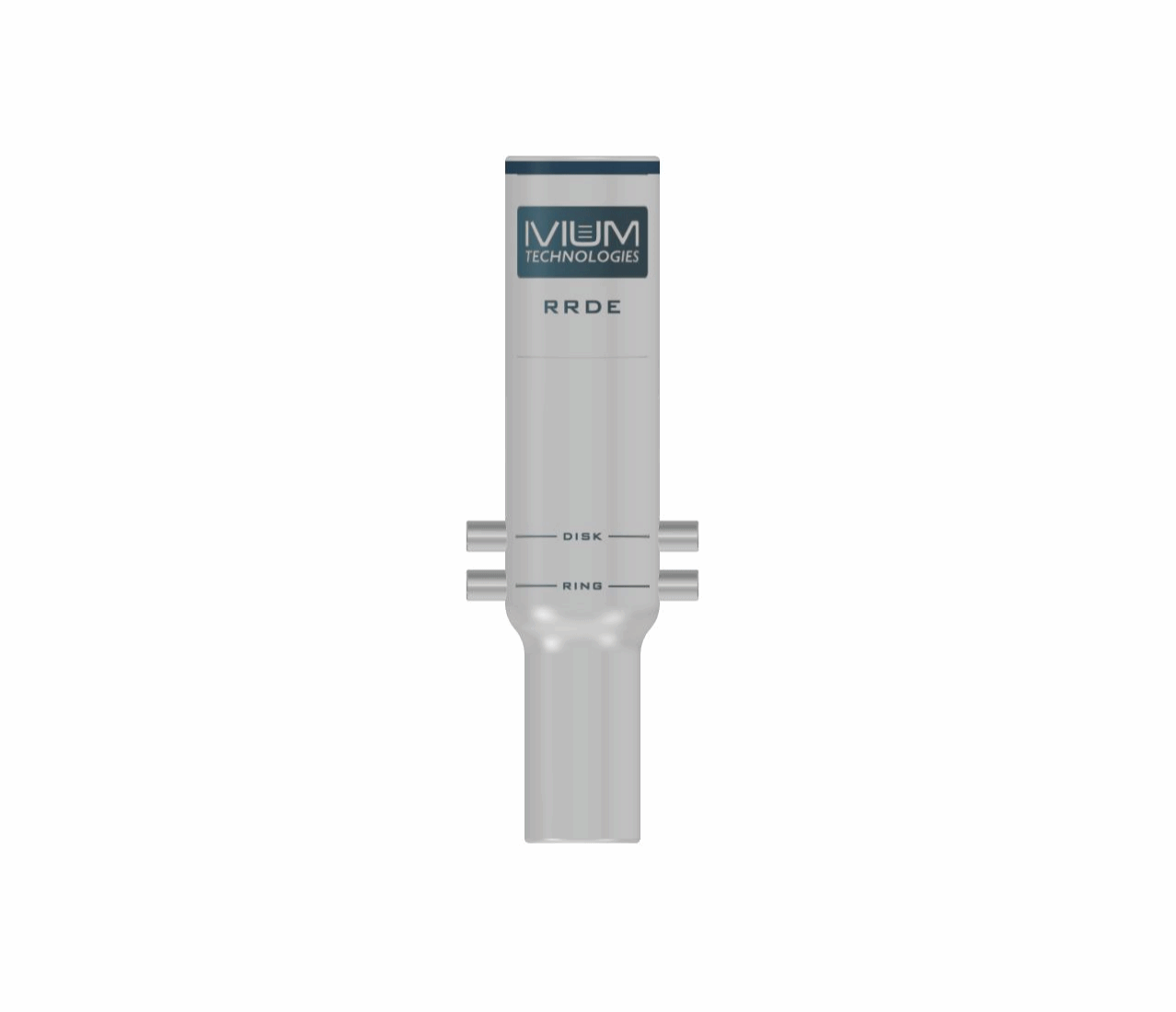

Rotator:
Height (not including shaft): 19cm
Diameter body: 6cm
Length of shaft (not including tip): 6.2cm
Weight: 1000g
Controller:
Size: 15 x 12 x 5.5cm
Weight: 380g
