Buy from your local reseller (US):
BASi Inc.

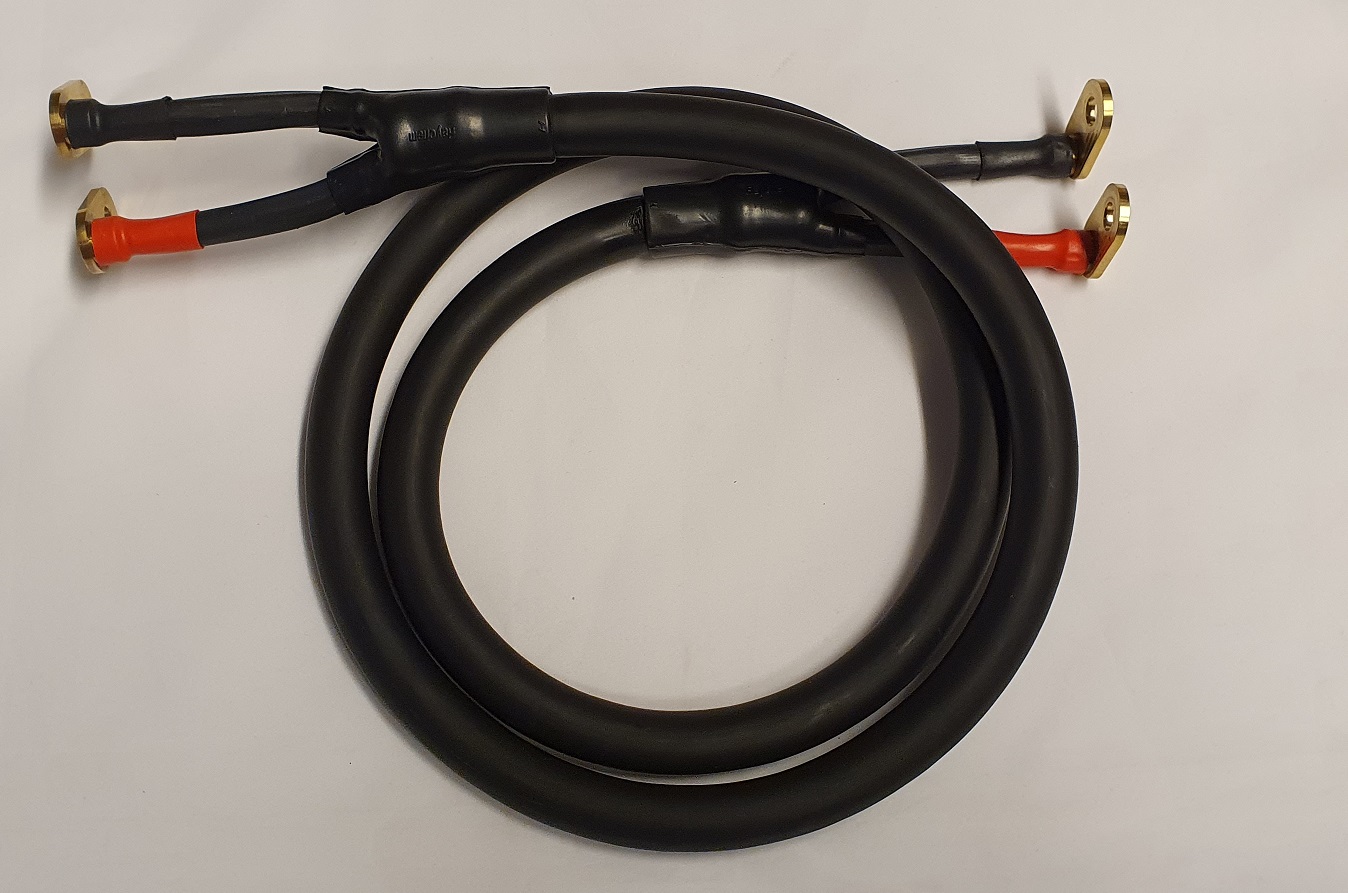

The IviumBoost10012 cell cable is specifically for use with the IviumBoost10012 power booster.
It connects to the WE and CE screw terminals on the front of the booster, has M8 loop terminals for connection to the cell, and a length of 1.3m.
