Module

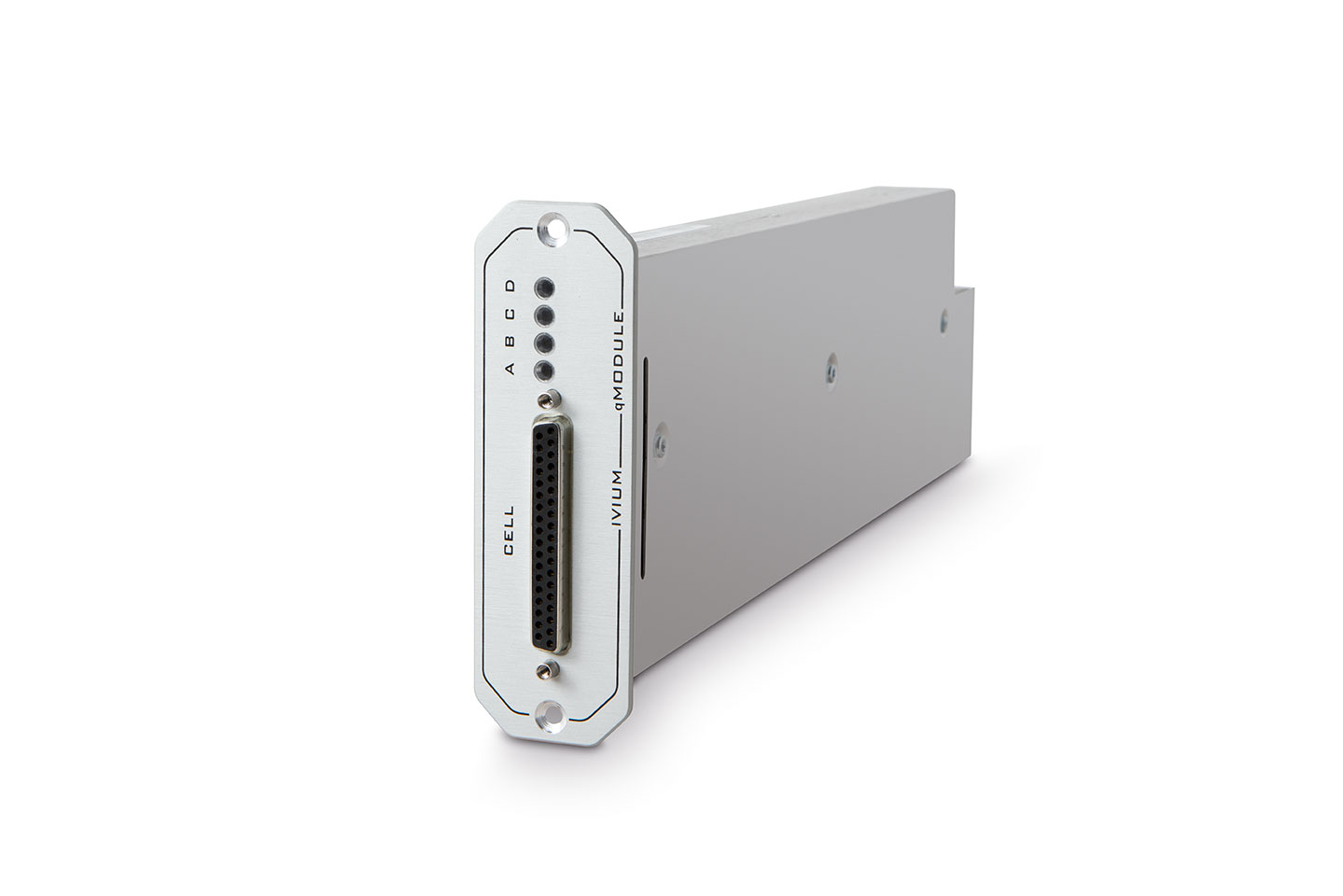

The qModule 30mA/10V is a quad channel module for the Ivium-n-Stat which allows ±30mA / ±10V compliance and simultaneous impedance measurements on each channel. IviumSoft allows control of separate channels or all channels simultaneously with a synchronized start. The module is encased in a protective housing for easy handling, and users can upgrade the number of channels in the Ivium-n-Stat in a simple plug and play manner.

Safety

The maximum current or potential of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Expandibility

The qModule can optionally be expanded with a True Linear Scan module, and/or FRA/EIS frequency range extended to 1MHz.

Hardware

• Automatic current range selection over all available current ranges
• Automatic variable noise filter and potentiostat/galvanostat stability settings
• Simultaneous acquisition of current/potential and peripheral signals
• Real time data display up to 3,000 pnts/s. Acquisition up to 300,000 pnts/s is stored in instrument memory
• Applicable scanrates: 1µV/s to 10,000V/s
• Minimum interval time: 3.33µs (0.125µs resolution)
• Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction

Channel Configurations

• 4 x ±30mA / ±10V
