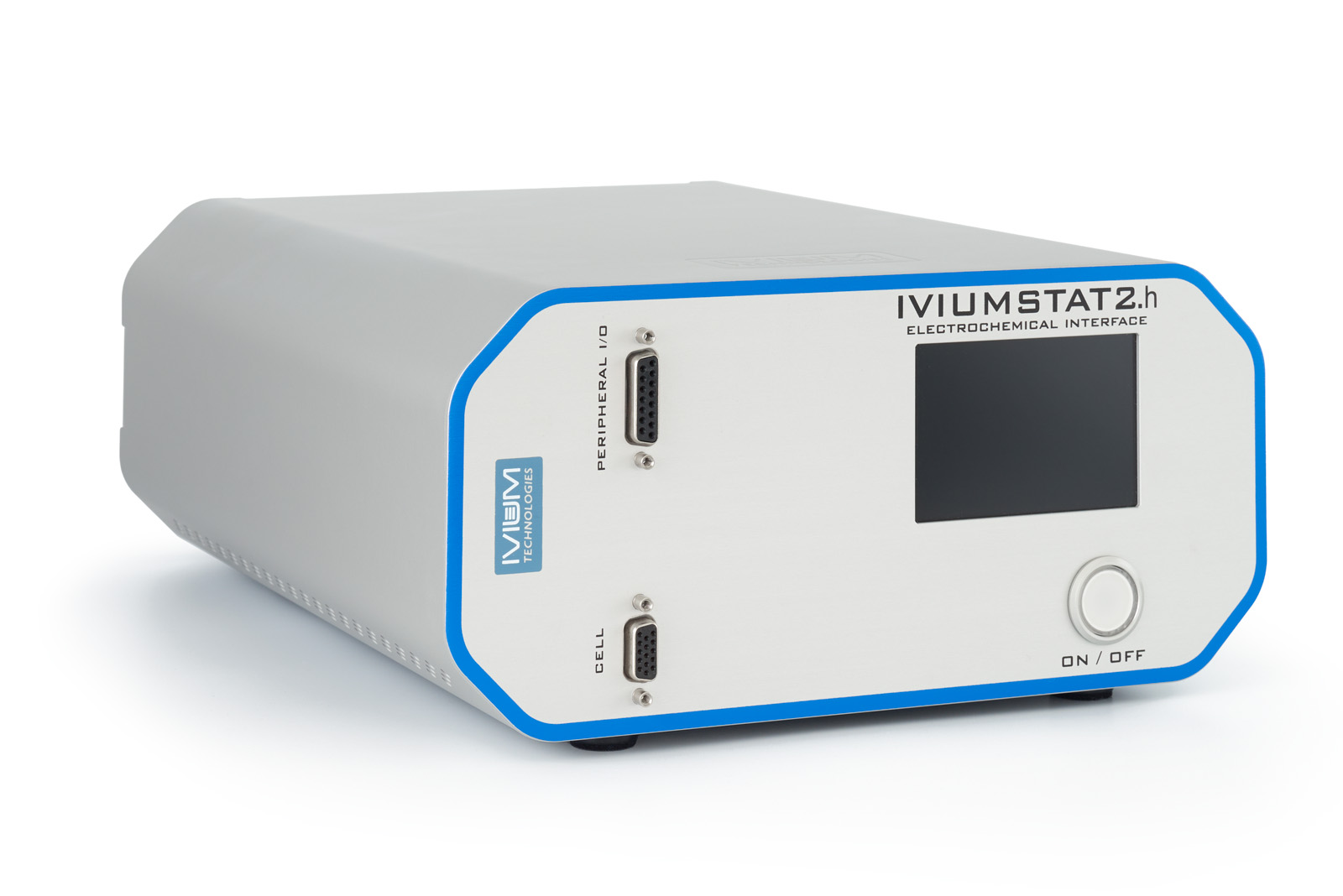

IviumStat.h

Choose configuration:

Scan range: ±5A/±10V

FRA/EIS: 10µHz to 8MHz

You can buy this product from your local reseller:

Ivium Technologies B.V.

Contact resellerRequest information

Product description

Wide application range:

The IviumStat.h is well suited for applications requiring a wide dynamic range, such as battery testing, corrosion measurements and electrochemical research applications. It has a high power of ±5A and low current ranges, down to 1pA full scale.

Complete solution:

The IviumStat.h offers a complete package, all the standard electrochemical techniques are included. The IviumStat.h also has an integrated  high-performance Frequency Response Analyser for EIS measurements from 10µHz to 8MHz. All measurement and dataprocessing software is included (for Windows based PCs).

Safety:

The compliance (maximum current or potential) of the instrument can be defined by the operator. Thus valuable samples may be protected, and unsafe situations prevented.

Automation:

Multiple analog and digital input & output ports are available for monitoring & control of peripheral equipment. This functionality is fully integrated in the software.

Expandability:

The IviumStat.h can be expanded with a wide variety of options and modules, including a Bipotentiostat, True Linear Scan generator, various power boosters, multiplexer and FastScan.

Hardware:

  • Automatic current range selection: 1pA to 10A/1mV to 10V (50V)
  • Automatic variable noise filter and potentiostat/galvanostat stability settings
  • Simultaneous acquisition of current/potential and up to 8 peripheral analog signals
  • Real time data display up to 500 pnts/s. Acquisition up to 100,000 pnts/s is stored in instrument memory
  • Applicable scanrates: 1µV/s to 10,000V/s
  • Minimum interval time/resolution: 10µs
  • Result optimisation by automated tuned filters, gain amplifiers and DC-subtraction

Software:

The IviumStat.h is controlled via Ivium’s own IviumSoft. This versatile, yet intuitive software, allows instrument control, data management and analysis, peripheral instrument control, etc. IviumSoft can also interface with and be controlled from LabVIEWTM, C++, Delphi, etc. A full suite of IviumSoft is included as standard with each instrument.

Read the full description

Specifications

System performance
Product Current compliance
±5A
Product Maximum output voltage
±10V below 1A, and ±8V up to 5A
Product Electrode connections
4; WE, CE, RE, S (and GND) with 4mm banana plugs
Product Potentiostat bandwidth
8MHz for small signals, 300kHz for large signals
Product Stability settings
High Speed, Standard and High Stability
Product Programmable response filter
1MHz, 100kHz, 10kHz, 1kHz, 10Hz
Product Signal acquisition
Dual channel 24bit ADC, 100,000 samples/s
Potentiostat
Product Applied potential range
±10V, 0.02mV res. (20bit)
Product Applied potential accuracy
0.2% or 1mV
Product Current ranges
±10nA to ±10A in 10 decades
Product High sensitivity current ranges
±1pA, ±10pA, ±100pA, ±1nA
Product Measured current resolution
0.00001% of current range, minimum 0.6aA
Product Measured current accuracy
0.2%
Galvanostat
Product Applied current resolution
0.00013% of applied current range
Product Applied current accuracy
0.2%
Product Potential ranges
±1mV, ±10mV, ±100mV, ±1V, ±10V
Product Measured potential resolution
0.00001% of potential range, minimum 0.15nV
Product Measured potential accuracy
0.2% or 1mV
Impedance Analyser
Product Frequency range
10µHz to 8MHz
Product Amplitude
0.015mV to 1.0V, or 0.03% to 100% of current range
Product DC offset
16bit DC offset subtraction and 2 DC-decoupling filters
Product Dynamic range
0.05nV to 10V, and 0.2aA to 5A
Electrometer
Product Input impedance
>1000Gohm //<8pF
Product Input bias current
<10pA
Product Bandwidth
>16MHz
Special functions
Product Ohmic drop compensation
2V/current range, 16bit resolution
Product Safety features
Automatic disconnect on internal/external limits
Peripheral connections
Product Analog in/out
8/2 (0 to +4V, 16bit resolution)
Product Digital input/output
2/3 (0 to +5V)
Product I-out/E-out
Analog monitor for cell current and potential
Product AC-out
±0.5V sinewave 10µHz-8MHz with variable attenuation
Product Channel-X input, Channel-Y input
+4V: to record impedance from peripheral devices
Environment
Product Power requirements
100-240V, 47-63Hz, 150VA
Product Interfacing
USB
Product Size (w x d x h)
26 x 33 x 12cm
Product Weight
4.2kg
Product PC requirements
Windows 7/8/10, with free USB port
Specifications subject to change, Ivium Technologies ©2018

Model comparison

IviumStat.h standard
IviumStat.XRi
IviumStat.XRe
System performance
Product Current compliance
±5A
±10A
±2A
Product Maximum output voltage
±10V below 1A, and ±8V up to 5A
±10V
±50V
Potentiostat
Product Applied potential range
±10V, 0.02mV res. (20bit)
±10V, 0.02mV res. (20bit)
±10V/±50V with 0.02mV/0.1mV res. (20bit)
Galvanostat
Product Potential ranges
±1mV, ±10mV, ±100mV, ±1V, ±10V
±1mV, ±10mV, ±100mV, ±1V, ±10V
±1mV, ±10mV, ±100mV, ±1V, ±10V, ±50V
Impedance Analyser
Product Dynamic range
0.05nV to 10V, and 0.2aA to 5A
0.05nV to 10V, and 0.2aA to 5A
0.05nV to 50V and 0.2aA to 2A
Environment
Product Power requirements
100-240V, 47-63Hz, 150VA
100-240V, 45-63Hz, 300VA
100-240V, 45-63Hz, 300VA
Product Weight
4.2kg
5.3kg
5.3kg
